Loci (Locus) | O Level Mathematics 4024 & IGCSE Mathematics 0580 | Detailed Free Notes To Score An A Star (A*)

Views 0
  • If you have to find the something at “x cm distance from a point” – also called equidistant from a point
    • Insert a pencil in the compass
    • Open it using the ruler to the same length
    • Put it on the point
    • Draw the angle inside the shape where the region must be for the same distance

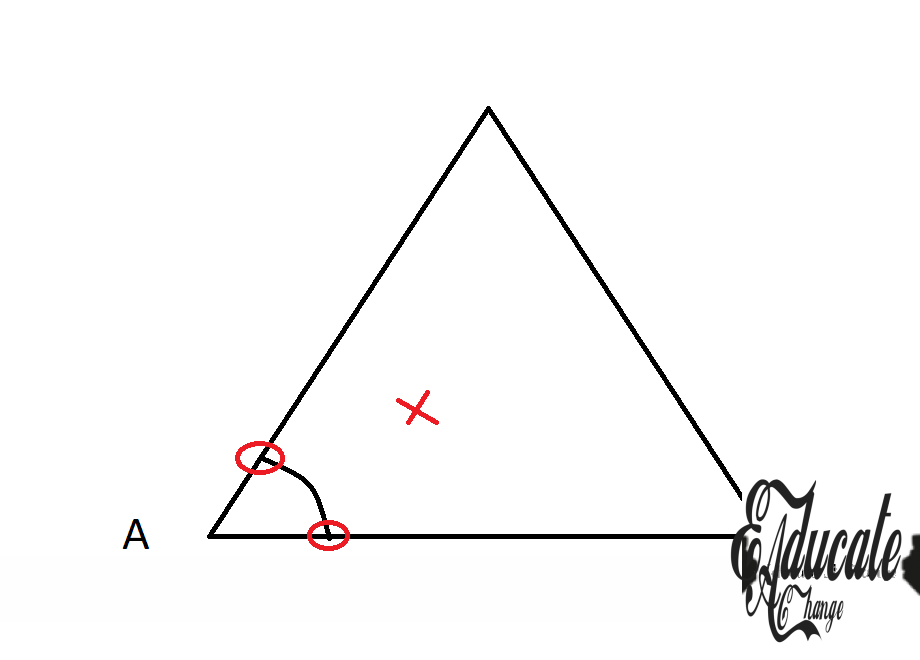

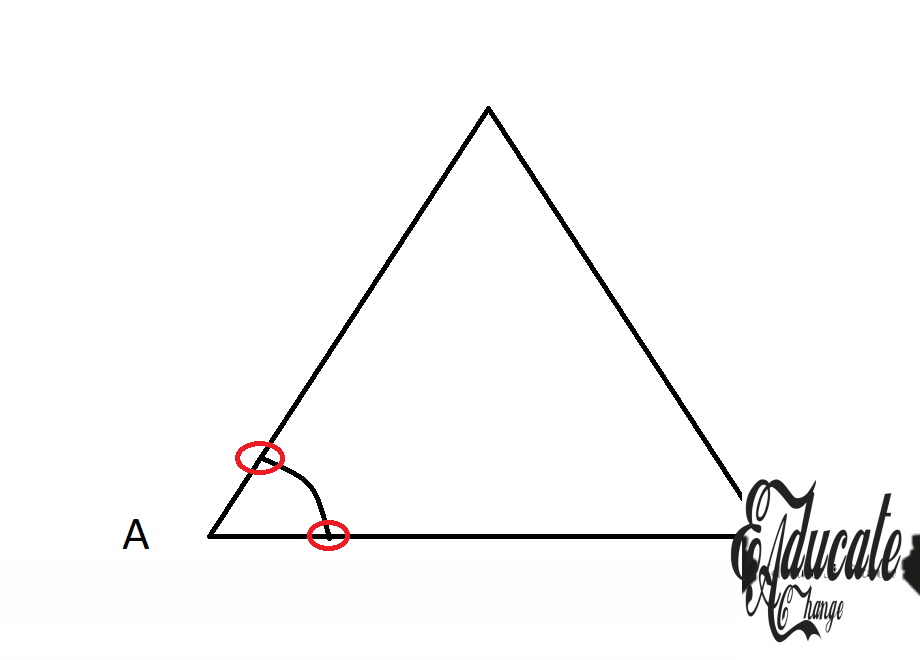

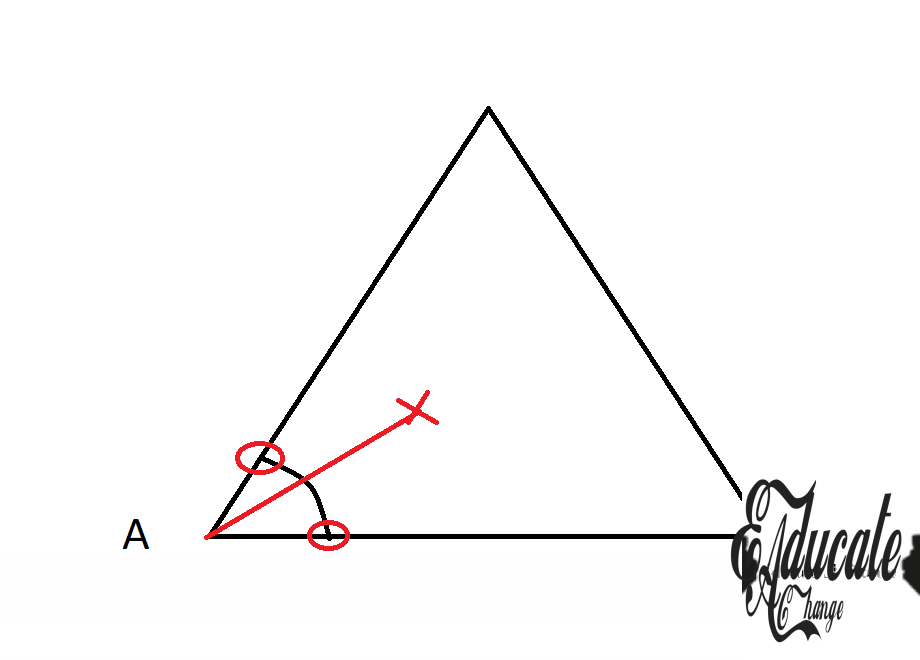

  • If you have to find the angle bisector
    • Consider this image

  • Put the compass on one of the points market in red
  • Open it more than half the distant to the other red points
    • More than half the distance is required because otherwise the cross won’t form
  • Mark a small cross on the other side of A (A is already of the point)
  • Then keeping it opened at the same length, place the compass on the other rend point
    • DO NOT CHANGE HOW WIDE IT IS OPENED
  • Mark the cross
  • Draw the line from the A to the cross

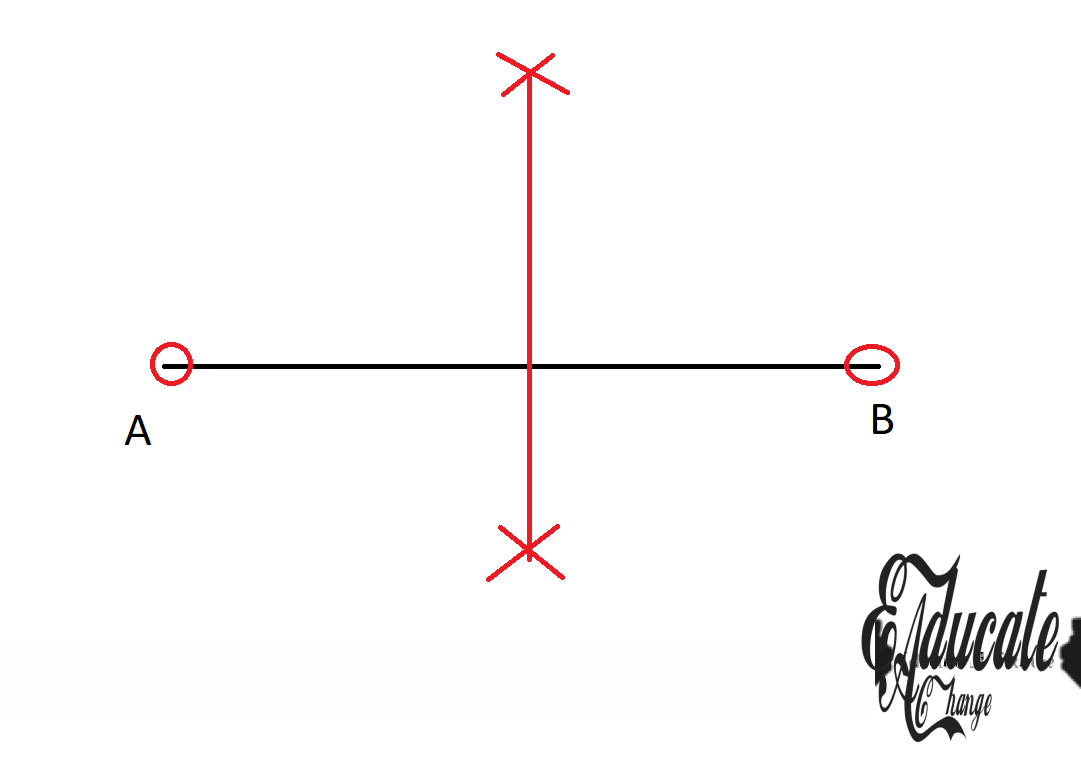

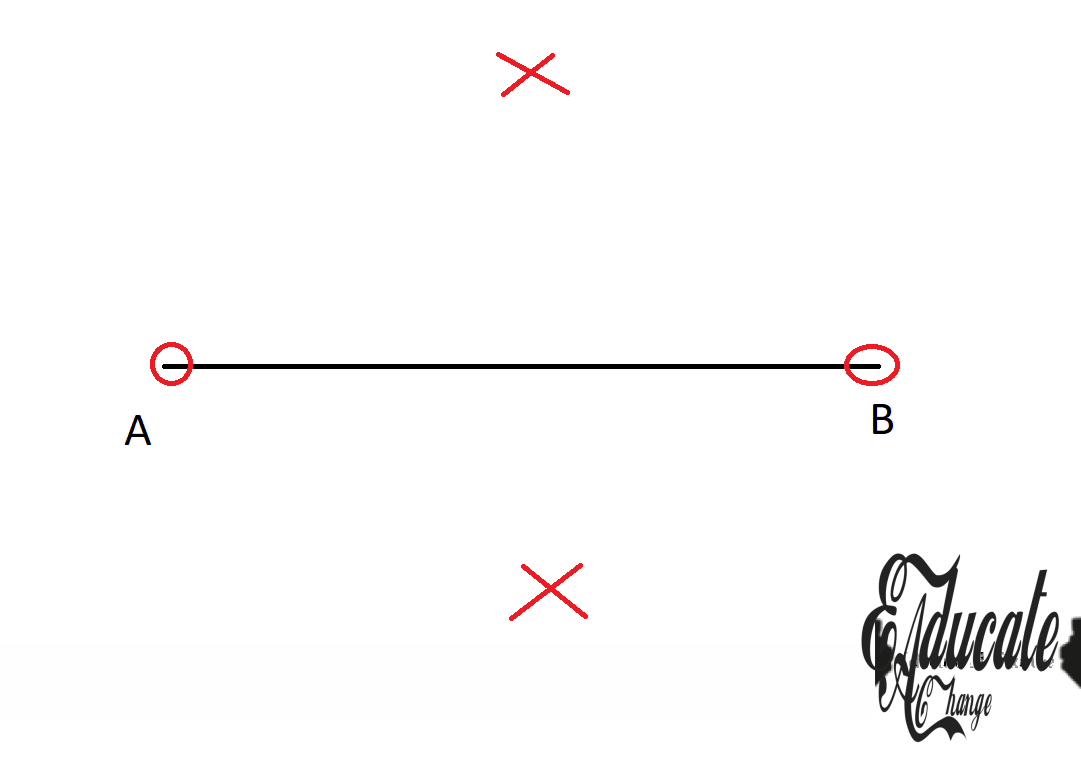

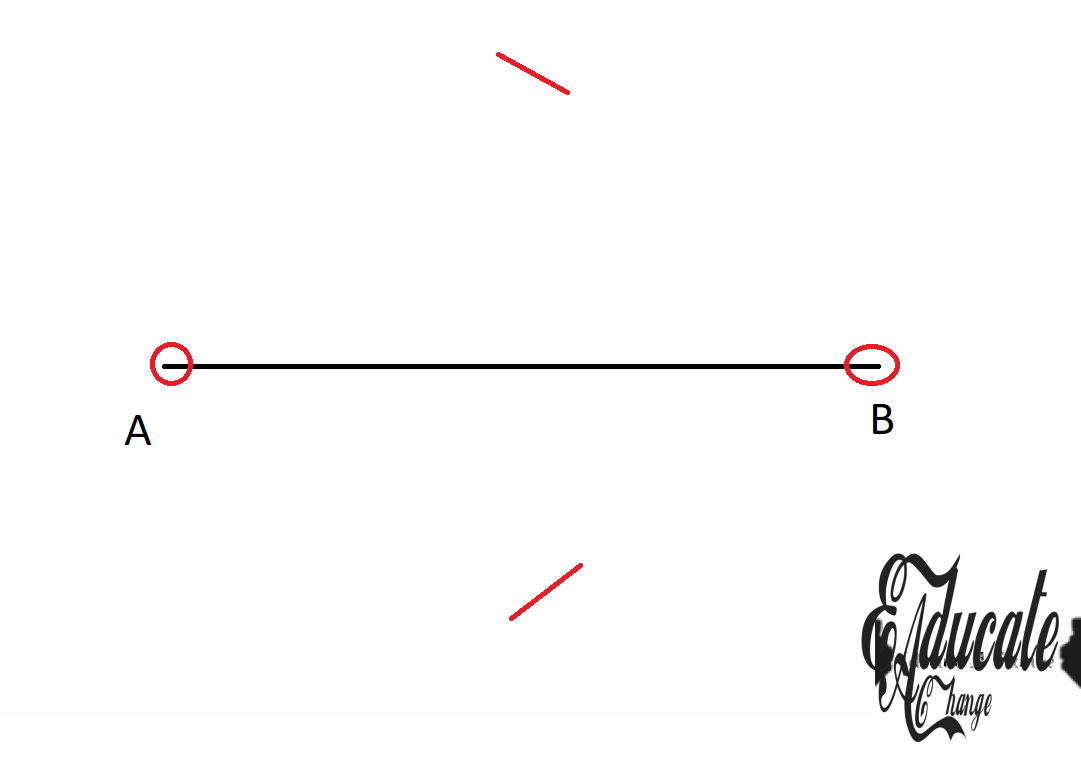

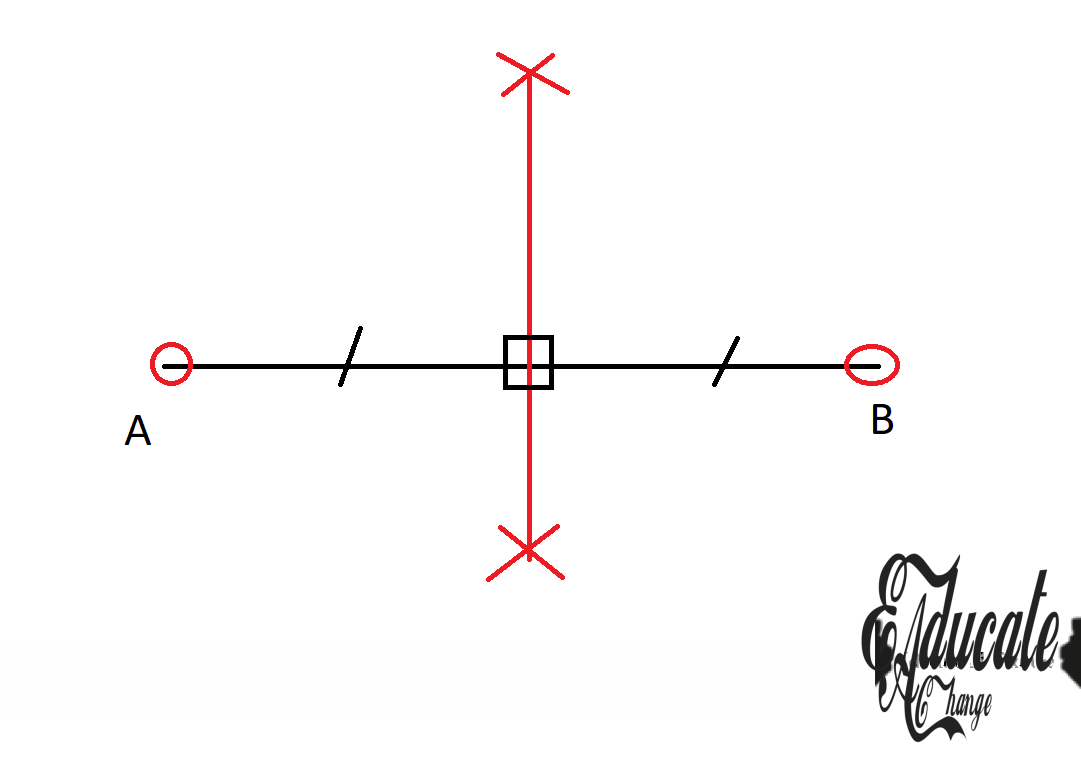

  • For equidistant from two points
  • Do the same steps as mentioned above, but now make crosses on both sides
  • See images below
    • All other rules same about compass opening etc

  • Do not lift the compass before making the mark on both sides of the line.

  • Remember, it is perpendicular bisector which means the angle is 90 and it divides the the line in two equal parts.

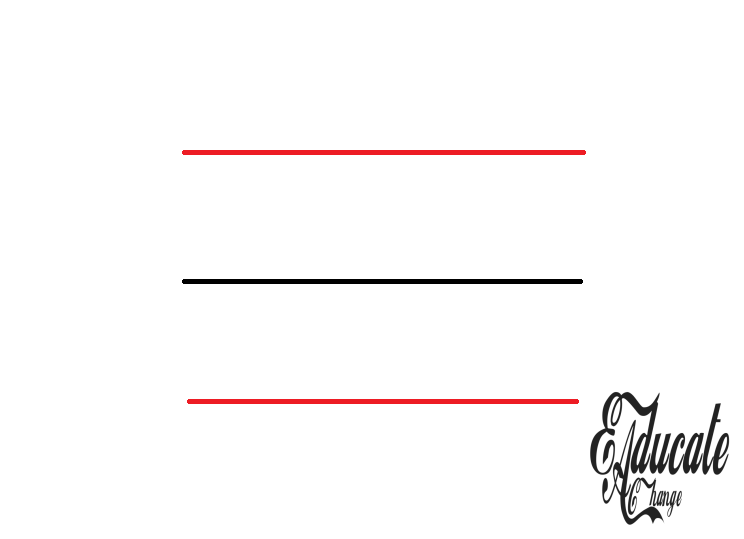

Equidistant from a line

  • Remember, a line is infinite, it has no end. A line segment has ends.

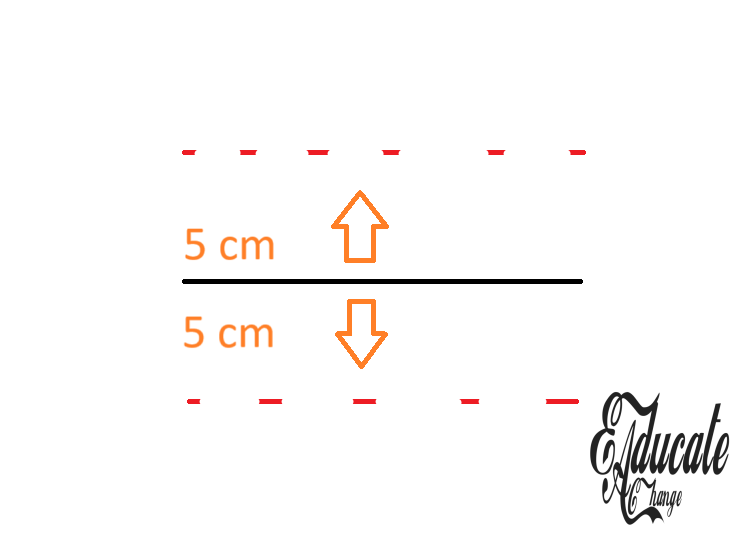

  • If you get a question regarding equidistant from a line/ line segment, the first steps are the same. It would have given you a distance that has to be taken. Use your ruler at various distances to mark the point on both sides of the line/ line segment. Then join the points with a straight line on both sides.

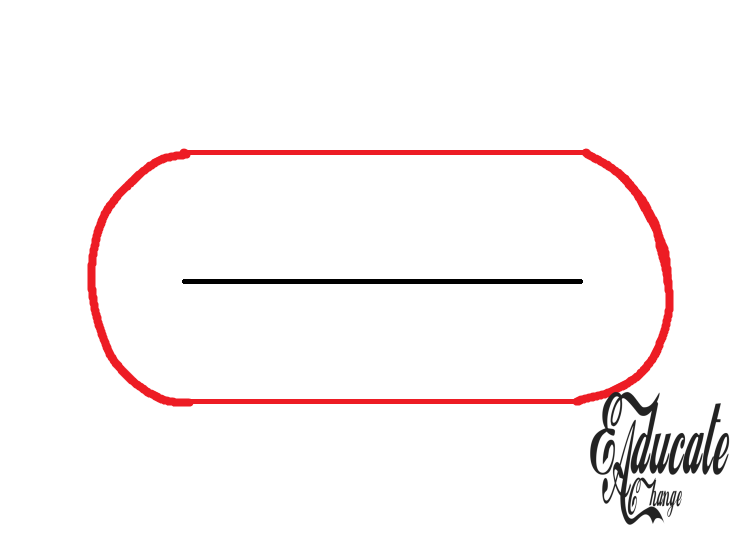

  • Now if this is a line segment, instead of a line, there is one extra step – you need to close the two sides as well.
  • Open your compass by the given distance (5 cm in this case).
  • Put it on one end of the segment and draw a semicircle that joins the line above and below it. Then do the same on the other end.
